Blueprint Scales: How to Measure Plans with a Ruler

You are standing over a freshly printed set of architectural drawings on your worktable. You want to check whether your modular sectional couch will fit against the living room wall, or how wide the breezeway between the kitchen island and pantry actually is. But the drafter didn't put a dimension string on that specific opening, and you don't own a triangular architectural scale ruler.

All you have is an ordinary tape measure or a 12-inch school ruler from the desk drawer. In this guide, we break down what drawing scales mean in practical terms: which scales municipal plan examiners demand, why paper sizes are standardized, and how to convert measurements on paper into real-world feet and inches in five seconds flat.

Every municipal building department enforces strict rules on acceptable drawing scales. Plan checkers review hundreds of permit sets every month; if an applicant submits drawings at non-standard or arbitrary scales, the intake desk will reject the package.

Here are the standardized scale tiers required on every professional permit package:

• Site Plans — Standard 1/8" = 1'-0" (or 1:100 / 1:200 Metric, 1" = 20' Civil): Site plans show property boundary lines, setbacks from boundaries, driveway crossings, and statutory utility rights-of-way.
• Floor Plans & Exterior Elevations — Standard 1/4" = 1'-0" (or 1:50 Metric): This is the universal standard for residential and commercial permit drawings. At 1/4" = 1'-0", every quarter-inch on paper represents one foot in the real building. This scale provides the exact level of detail required for examiners to review room dimensions, stair configurations, window egress calculations, and plumbing fixtures.
• Building Sections & Construction Details — 1/2", 3/4", or 1-1/2" = 1'-0": Enlarged cross-sections show structural assemblies, foundation footing ties, lintel beam bearing points, and moisture barrier details so carpenters, masons, and municipal inspectors can verify structural compliance.

Drawing scale is directly tied to physical sheet size. In architectural construction, paper sheets follow standard Arch sizing:

• Arch D (24" × 36"): The Undisputed King. A typical single-family home (2,000 to 4,500 sq ft) or standard commercial tenant improvement fits comfortably on a 24" × 36" sheet at 1/4" = 1'-0" scale, leaving ample margin for title blocks, code matrices, and general notes. Over 90% of permit sets are authored on Arch D.
• Arch C (18" × 24"): Small Footprints. Occasionally used for smaller detached casitas, guest suites, or accessory buildings.
• 11" × 17" (Tabloid / Ledger): Minor Remodels & Decks. Municipalities sometimes accept 11" × 17" for straightforward permits like terrace rebuilds or interior plumbing lines, but never for complete custom home packages.

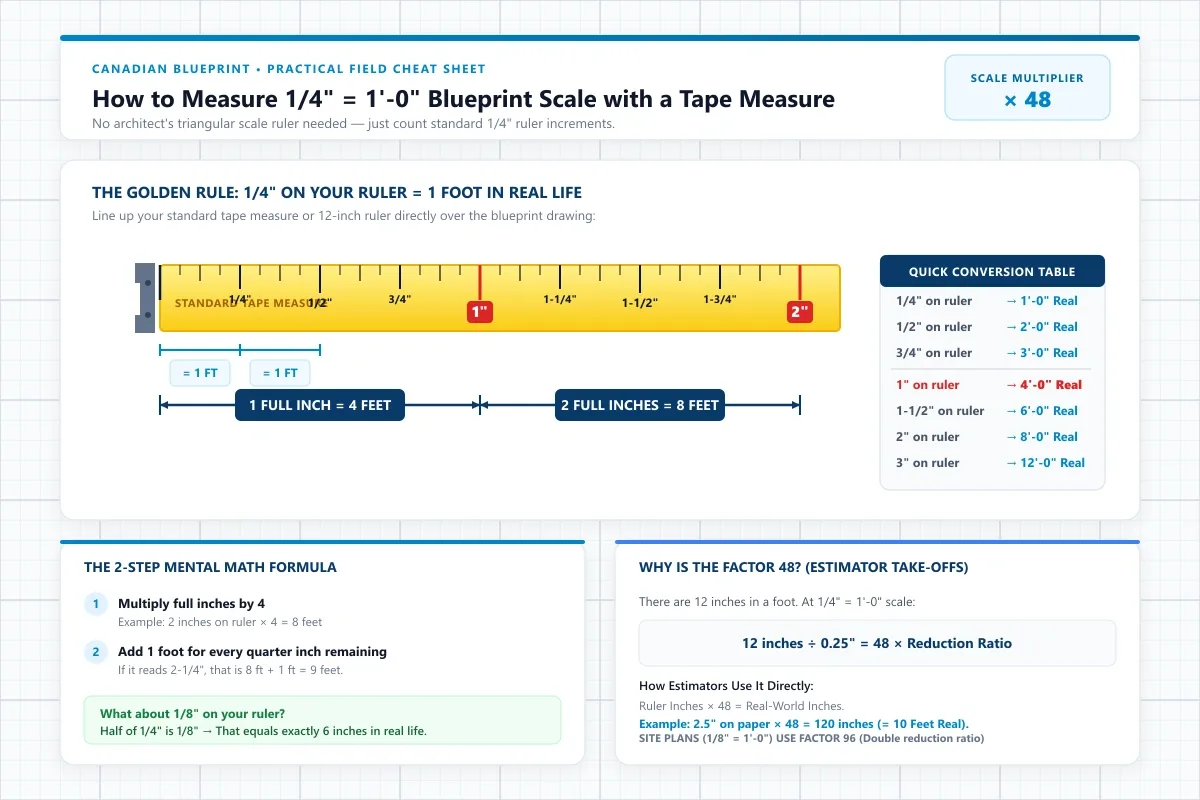

If you don't own a triangular scale ruler, you can measure any 1/4" = 1'-0" floor plan with an ordinary hardware tape measure or standard 12-inch school ruler using this simple rule:

The 5-Second Mental Math Formula:

Take your tape measure, lay it across the un-dimensioned wall or clearance on paper, and multiply the full inches by four:

• Your tape measure reads 1-1/2 inches: That is (1 × 4) + 2 = 6 feet in real life.
• Your tape measure reads 2-1/4 inches: That is (2 × 4) + 1 = 9 feet in real life.
• Your tape measure reads 3-3/4 inches: That is (3 × 4) + 3 = 15 feet in real life.

Phase 03 Scale Cheat Sheet

While using a ruler or tape measure is great for rough furniture estimates, keep these three critical rules in mind to avoid expensive construction mistakes:

1. Written Dimensions Always Overrule Your Ruler: This is the universal golden rule of construction blueprints. If a dimension line says 14'-6", but your ruler measures 14'-2", build to the written number. Paper expands and contracts with changes in ambient humidity, and large-format plotters introduce microscopic line drift. In construction inspections, the written text always takes legal precedence over physical scaling.
2. The "Fit to Printable Area" PDF Trap: If you receive a digital PDF permit set and print a page at home or at an office print shop, ensure the printer settings are set to "Actual Size" (100%) rather than "Fit to Page" or "Shrink to Printable Area". Printing a 24" × 36" document with "Fit to Page" selected shrinks the linework by approximately 4% to 7%, rendering all physical ruler measurements completely useless.
3. Screen Measurements Without Calibrated Software: Never hold a physical ruler up to a computer monitor, iPad, or TV screen. Because screen resolutions vary, pixels do not represent physical inches. If reviewing drawings digitally, always use a dedicated free CAD viewer or PDF tool with a calibrated measurement tool that locks onto vector snapping points.
